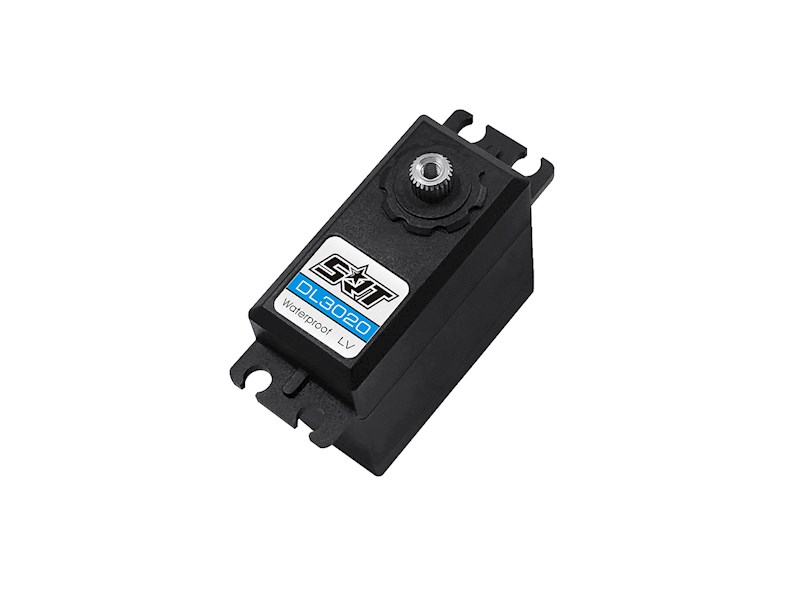

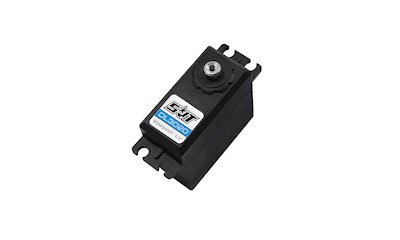

SRT DL3020 LV Digital Waterproof Servo

KEY FEATURES

- ncredible efficiency and low power consumption
- 2 ?sec Dead Band
- 1-Year Limited Warranty

Application :

1/10 Crawler

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Aluminum
control system: pulse width control
working frequence: 1520?s / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.13 sec/60 degrees at no load
operating speed (6.0v): 0.11 sec/60 degrees at no load
stall torque (4.8v): 18.0kg.cm (250.0 oz/in)
stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
weight: 56.0g (1.98 oz)
connector wire length: jr 290 mm
