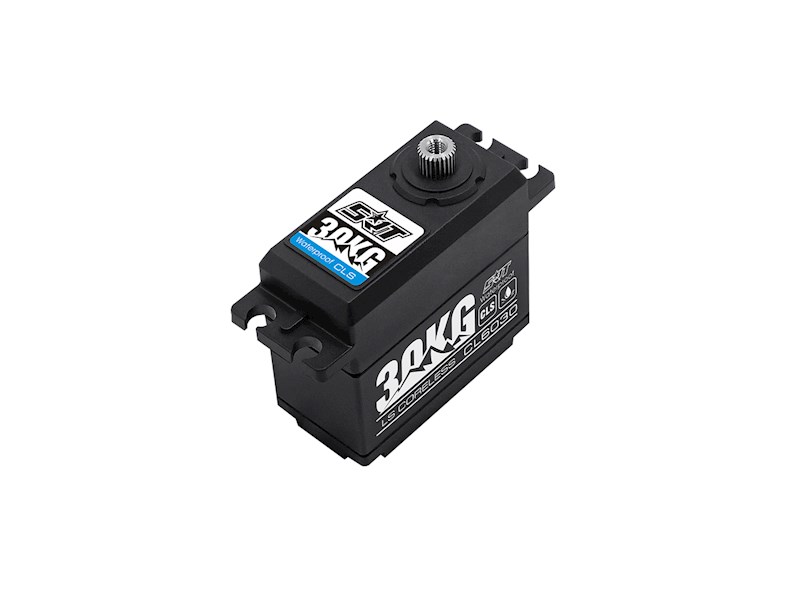

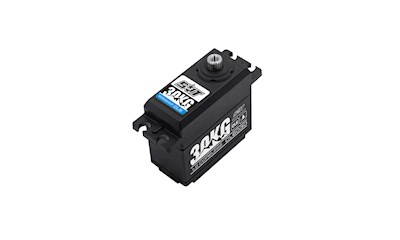

SRT CL6030 Waterproof Coreless Servo

KEY FEATURES

- Titanium & Steel gears for precision and durability
- Intermediate aluminum case
- NMB dual main bearings
- Superior waterproof
- 25T output shaft
- 1-Year Limited Warranty

Application :

1/10 Crawler

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520?s / 330hz
operating voltage: dc4.8-7.4v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.13 sec/60 degrees at no load
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.11 sec/60 degrees at no load
stall torque (4.8v): 19.0kg.cm (263.9 oz/in)
stall torque (6.0v): 25.0kg.cm (347.2 oz/in)
stall torque (7.4v): 30.0kg.cm (416.6 oz/in)
potentiometer drive: direct drive
dimensions: 41.3x20.5x38.3 mm /1.63x0.8x1.51 in
weight: 69.0g (2.43 oz)
connector wire length: jr 300 mm
