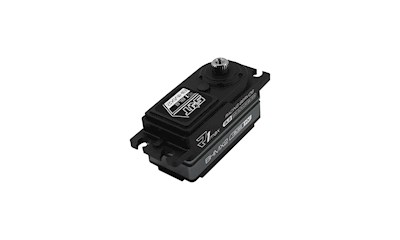

SRT BHMX2 1/10th Brushless Servo

BHMX2 is designed for 1/10 Electric Touring, 1/10 E-Buggy, 1/10 Nitro-Touring and 1/8 Nitro GP.

Specifications

Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium + 7075
control system: pulse width control
working frequence: 1520?s / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.080 sec/60 degrees at no load
operating speed (7.4v): 0.073 sec/60 degrees at no load
operating speed (8.4v): 0.065 sec/60 degrees at no load
stall torque (6.0v): 15.0kg.cm (208.3 oz/in)
stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
stall torque (8.4v): 23.0kg.cm (319.4 oz/in)
potentiometer drive: direct drive
dimensions: 41.0x20.0x23.3 mm /1.61x0.79x0.92 in
weight: 42.0g (1.48 oz)
connector wire length: jr 180 mm
