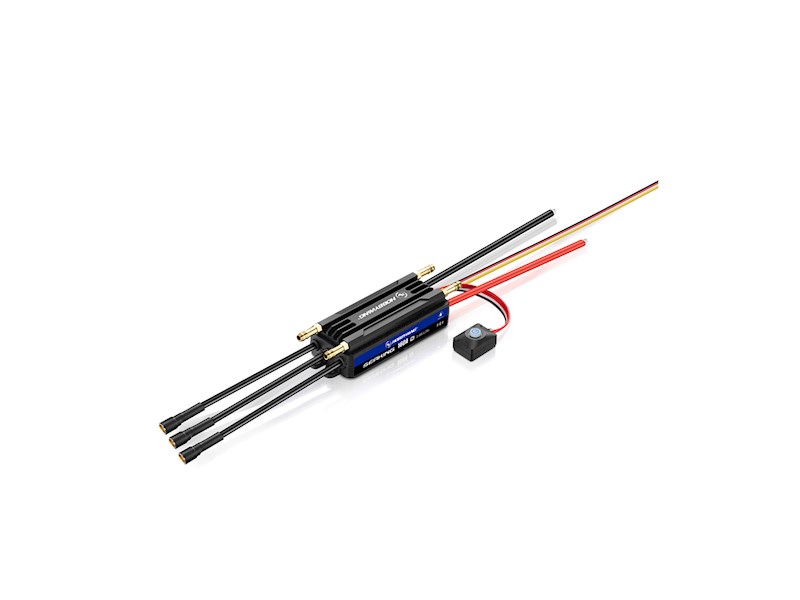

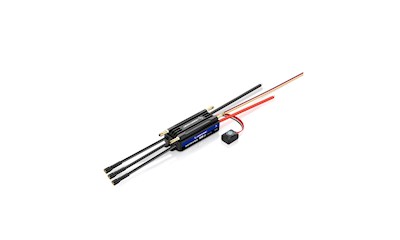

SEAKING 160A V4

Introducing from Hobbywing the SeaKing 160A V4 Boat speed control.

High reliability and durability.

Built-in Bluetooth for Connecting the Mobile APP Directly
The ESC features a built-in Bluetooth module, allowing easy connection to a mobile app for parameter settings data reading firmware upgrades all without the need for additional devices, making it incredibly
user-friendly.
Note: Due to transmission distance of bluetooth, the effective distance isonly about 5m!

Built-in Data Logging for Performance Monitoring
The ESC features a built-in Bluetooth module, allowing easy connection to a mobile app for parameter settings, data reading, and firmware upgrades, all without the need for additional devices, making it incredibly user-friendly.

IP67 Fully Waterproof Design
With an IP67 protection rating, this ESC boasts outstanding waterproof and dustproof capabilities. It can be used immediately without any additional waterproofing treatment.
Note: The IP67 rating ensures protection against splashes, water, and dust under normal use. It has been tested under controlled lab conditions according to GB/T
4208-2017 (domestic) and IEC 60529 (international) standards. However, the protection is not permanent and may decrease with wear and aging.

Super Built-in BEC
Maximum continuous current 8A
Maximum instantaneous current 25A
The output voltages are switchable between 6.0V / 7.4V / 8.4V Which can easily drive various powerful servos and high-voltage servos.

Dual-Channel Water Cooling for Lower Temperature

This ESC features a dual-channel water cooling system

Providing enhanced heat dissipation

Ensuring the ESC remains within a safe temperature range during use

Sleek Design for Easier Installation
The SeaKing 160A V4 ESC features a sleek, elongated design that is 15% narrower (7mm slimmer) than its predecessor, the SEAKING 180A V3. This streamlined profile enhances installation convenience, particularly in boats with limited space, offering greater adaptability for professional and recreational applications.

Capacitor Overheating Protection
The capacitor overheating protection helps prevent damage to the ESC caused by capacitor failure due to overloading, safeguarding the unit against complete failure.

Freewheeling Function
When enabled the Freewheeling function ESC temperature is cooler.
When the throttle is released the boat decelerates faster.
Cornering control and handling BETTER.

AUX External Control Channel for Real-time Parameter Adjustment
By connecting the yellow signal wire to an unused receiver channel, you can adjust ESC parameters (like reverse thrust) in real-time using the remote control, adding convenience to parameter management.

Optimized Programmable Parameter
With 11 programmable parameters, the ESC is designed to meet competitive racing needs, offering a wider and more detailed range of settings.

Specification

Scale - 1/10th

Brushed/Brushless - BL

Sensored/Sensorless - SL

Waterproof - Waterproof

Cont./Peak Current - 160A/800A

Input Voltage - 3-8S LiPo

BEC Output - Switch Mode 6V/7.4V/8.4V @8A

Input Wires - Red-10AWG-160mm*1,Black-10AWG-160mm*1

Output Wires - Black-12AWG-150mm*3

Input Connectors - No

Output Connectors - Black-12AWG-150mm*3

Data Recording

Extreme Value - Supported

Real-Time Data - Supported

Historical Data (Graph) - Supported

ESC Programing via

LED Program Box - Not Supported

LCD G2 Program Box - Not Supported

LCD Pro - Not Supported

OTA Programmer - Not Supported

Program Port - Built-in Bluetooth

Firmware

Firmware Upgrade - Supported

Size - 91*41*25.5mm

Weight - 220g(Including wire and output plug)

Applicable Boat - ?120CM
