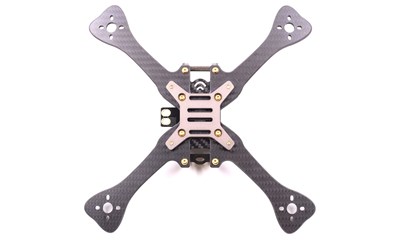

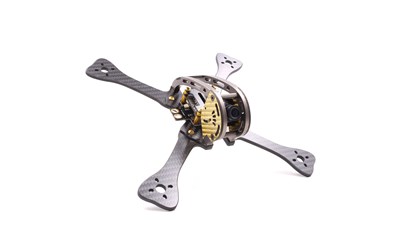

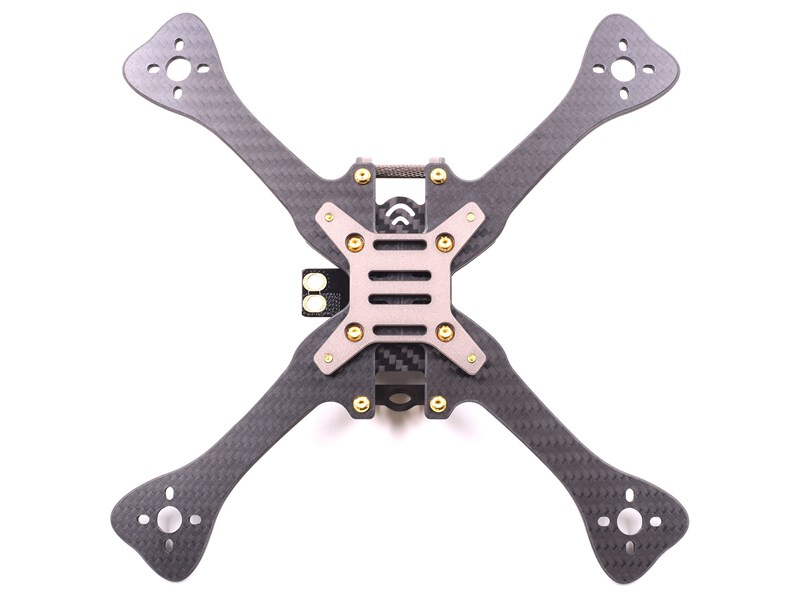

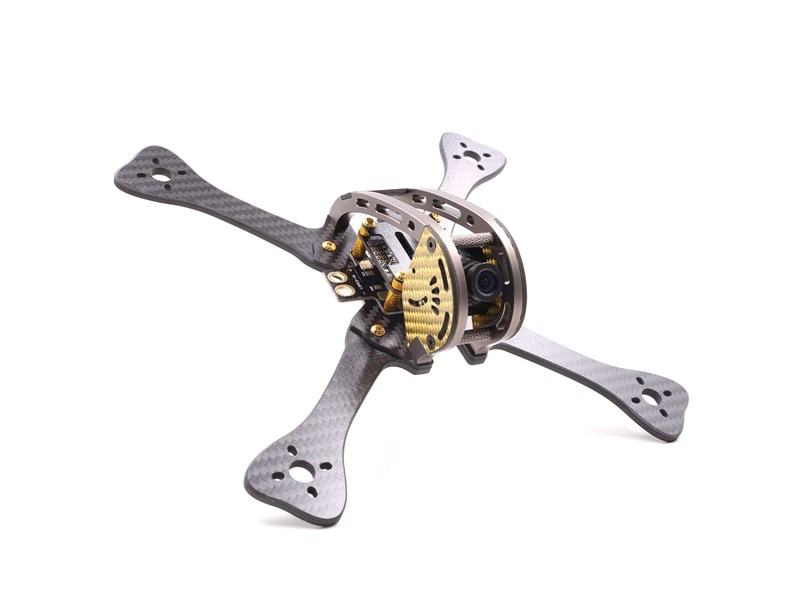

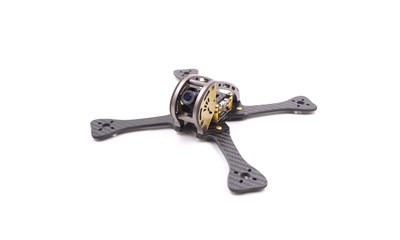

GEP-LSX5 FPV Race Carbon Frame 230 mm

This is GEP – LSX5, Leopard(GEP-LX) derivatives, ‘S’ mean is stretching. This is more suitable for competition. High-speed forward flight and rapid roll have more advantages. GEP-LSX respectively with three kinds of specifications. GEP-LSX5 wheelbase 230 mm, suitable for 5inch propeller.

Summary:

The leopard, natural predators, running at a staggering rate

The frame use 3k ultra-light carbon plate + Aviation aluminum # 7075 body. To strengthen the four arm, we also design a fixed four arm of the aluminum alloy parts, it is not easy to make the machine arm shift.

We also equipped with A piece of PDB, take BEC output 5 v 3 A and 12V 0.5A.The frame all adopt the YFS screws, 12.9 magnitude

Specifications:
Name:GEP-LSX5
Weight:114g
Wheelbase:230mm
Props Size: 5inch
Size:178*222mm
Arms board:4mm
Side board:2mm
Other board:1.5mm

Recommended:
Flight Controller:F3 /F4/Naze32/ CC3D
Motors: 2204/2205/2206/2305/2306
ESC:20A-30A
Propeller:5inch
Battery: 3S 1300mAh ~ 4S 1800mAh

Features:

Aviation aluminum # 7075 high-precision CNC fuselage, very strong resistance to blast
3K high strength carbon board to ensure that the frame is strong
An aluminum alloy structure, binding the four machine arm will not shift
The structure of SX, suitable for racing
Reasonable gopro, runcam position, convenient video
5 mm wide, 4 mm thick arm design, small wind resistance coefficient
5 inch wheelbase 230 mm, 4 “wheelbase 205 mm, 6 inch wheelbase 265 mm, have wider air through
The YFS screws, 12.9 level of hardness
support HS1190 HS1170, Swift
The motor position widened, home is not easy to hit the motor
The camera is adjustable, 0 to 60 degrees
With the kits: a piece of PDB panels, integrated XT60, BEC (5/12v output)
