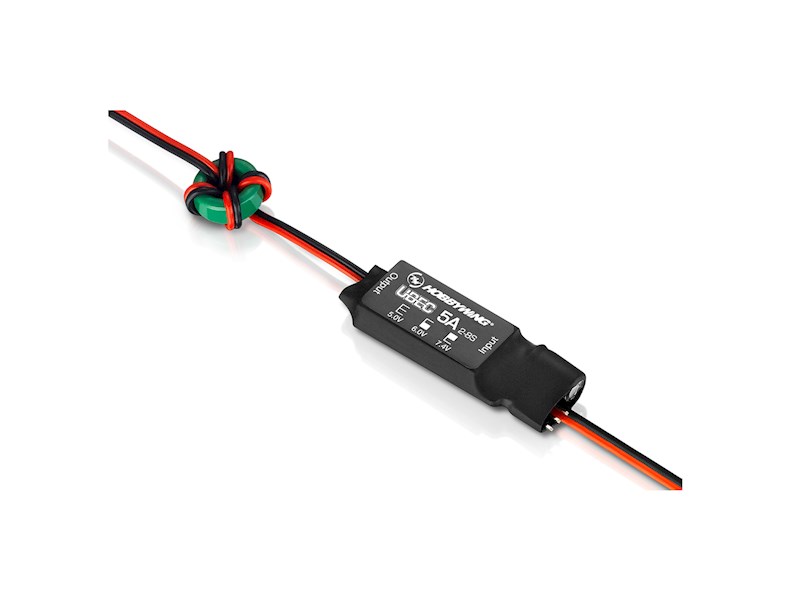

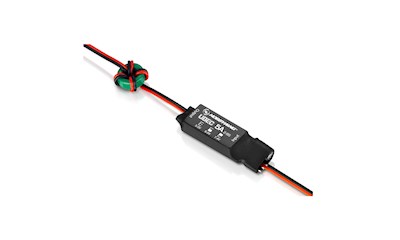

UBEC-5A-V2 Air - 2-8S
ArtikelNr: | HOW-30607000 |
Hersteller: | Hobbywing |
HerstellerNr: | 30607000 |
EAN: | 5051294172619 |
Erschienen im: | September 2023 |
The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. UBEC output voltage is adjustable in three stages (5.0/6.0/7.4 V) with a continuous current of 5A and a maximum of 15A. The voltage specifications allow the use for a wide range of servos and electrical equipments. The UBEC is equipped with overcurrent protection, output short-circuit protection, overheat protection.
Specifications
Model?UBEC 5A
Input voltage?2-8S Lipo
Output voltage?5.0 / 6.0 / 7.4 V (3 options adjustable)
Output current?Continuous 5A?Instantaneous 15A
Measurement?50*17*10mm
Weight ?21g
"Erforderliches Zubehör" nicht spezifiziert, eventuell sind zusätzliche Produkte erforderlich.
