QR16BL30 G2 & 2030SL 7800KV G2 COMBO

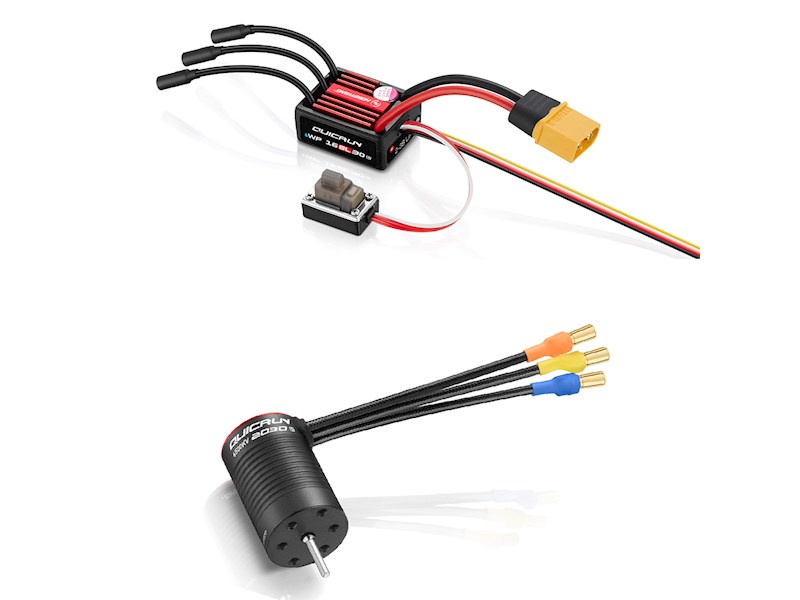

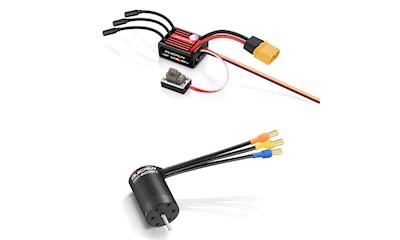

Introducing the Hobbywing QuicRun 16BL30 G2 Waterproof brushless speed control and 2030Sl motor combo.

Intelligent Freewheeling for Lower Heat and Enhanced Performance
The ESC features intelligent freewheeling technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.

Compact Size for Easier Installation and Flexible Layout
Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.

BEC Upgrade Compared to the G1 ESC
The BEC’s continuous current has been upgraded from 1A to 2A.
A peak current of up to 4A
The output voltage can be switched between 6V and 7.4V.

Easily powering high-torque and high-voltage servos. This provides faster response and more precise control.

High Protection Rating
IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.

Note: The IP67 protection rating described above applies under normal usage conditions, providing splash resistance, water resistance, and dust resistance, as tested under controlled laboratory conditions. These protective features are not permanent, and protection performance may degrade over time due to regular wear and aging. Do not submerge the product in water for extended periods, as this may cause damage.

Multiple Programming Methods
Supports three programming methods: LCD Program Box Pro, LED Program Box, and SET button, allowing users to conveniently select their preferred programming method for parameter adjustments.

Exceptional Value for Money
Specifically designed for entry-level users, with HOBBYWING’s exceptional quality. Easy to operate and beginner-friendly, with no complex setup required.

Perfect Match for QuicRun 2030 G2/2435 G3 Motors
The ESC offers excellent compatibility when paired with QuicRun 2030 G2/2435 G3 motors, delivering smoother control.

Wide Compatibility
The power system is suitable for both 1/16th & 1/18th scale hobby vehicles.

Specifications

Type
Scale - 1/16th, 1/18th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Waterproof - Yes

Specifications
Cont./Peak Current - 30A/100A
Input Voltage - 2-3S LiPo
BEC Output - 6V/7.4V@2A

Cables and Plugs
Power Cord - Black-16AWG-75mm*1,Red-16AWG-75mm*1
Output Line - Black-16AWG-60mm*3
Power Plug - XT60
Output Plug - 3.5MM gold female plug

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
OTA Programmer - Not Supported
Program Port - Shared with Throttle Wire

Data Recording
Extreme value records - Not Supported
Real-time Data - Not Supported
Historical Data (line graph) - Not Supported

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 33.4*26.8*15.1mm
Weight - 38.5g( Included wires & connectors)

Applications
Supported motor types - Sensorless brushless motor, sensored brushless motor (only works in sensorless mode)
Applicable models - 1/16th?1/18th On-Road & Off-Road
Applicable motor - QUICRUN 2435 G2


-----

Motor

Increased Efficiency
The maximum efficiency is increased by over 6%

Reduced Temperature
Under equivalent load conditions, the maximum temperature can be reduced by approximately 20?
Compared to EzRun 2030 motor

Supports higher speed limit
The motor adopts an integrated magnetic ring structure to strengthen the rotor. It is able to support a higher speed limit of up to 65000RPM. It is increased by 4% when compared to EzRun 2030.

Excellent protection
The outlet of the motor is sealed with a silicone rubber sleeve to operate in harsh conditions suchas dust, sand and gravel.
Note: It is recommended to block the unused mounting holes of the motor front end cover with screws.

Upgraded materials increased durability
-0.2mm thick silicon steel sheet.
-High-strength explosion-proof rotor.
-High-temperature resistant enameled wire.
-High-precision bearings.

Plug-and-play
Wire outputThe motor output wires are soldered with 24k gold-plated 3.5mm plugs. The plug-and-play connectivity makes it easy to use and improves the quality of life.

Wide applicability
It is widely applicable with three KV values to choose from. It is suitable for all types of 1:18 scale vehicles ranging from on-road to off-road vehicles, short course trucks, trucks, and monster trucks.

Specifications

Scale - 1/18th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Pole Count - 2

R
