SSX-8-R VELOX 805 - 2150KV - Combo

SSX-8-R VELOX 805 - 2150KV - Combo - Rigid|1:8, 1:8, 4 WD, Bausatz, Brushless Sensored

Corally • RC Fahrzeug

ArtikelNr: COR-C-00130-C2
CHF 901.15
Wird für Sie bestellt

SSX-8-R VELOX 805 - 2150KV - Combo - Rigid|1:8, 1:8, 4 WD, Bausatz, Brushless Sensored

Produkttyp:RC Fahrzeug
ArtikelNr:COR-C-00130-C2
Hersteller:Corally
HerstellerNr:C-00130-C2
EAN:8718057166472
mehr Anzeigen

Produktbeschreibung

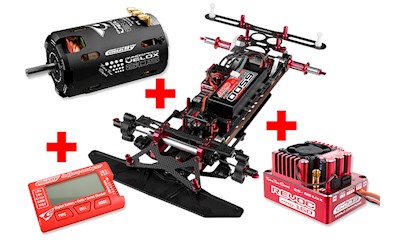

SSX-8-R Car Kit + VELOX 805 2150 KV Combo
Save money and purchase your SSX-8-R Car Kit together with this optimised VELOX 805 2150 KV motor, REVOC 160 2-6S Controller and his Smart Box to program the REVOC 160 Controller.

SSX-8-R Features:
• 3.0mm carbon fibre chassis
• 2.5mm carbon fibre front arms
• 2.5mm carbon fibre radio plate
• 2.0mm carbon fibre body plates
• Adjustable “Ball Type” front steering
• Adjustable front camber and caster
• High strength composite plastic parts
• 7075 T6 Alloy bulkheads - front
• 7075 T6 Alloy bulkheads - rear
• 6065 T6 Alloy wheelspacers - rear
• 6065 T6 Alloy body posts
• 6065 T6 Alloy servo posts
• 6065 T6 Alloy battery posts
• Hardened steel drive shafts
• Ball bearing servo saver
• Adjustable front pivot dampening
• Composite side-links
• CNC Delrin 32DP main gear 60T

SSX-8-R Technical Specs:
Front Width: 248-254mm
Rear Width: 262mm
Wheelbase: 294mm
Weight (Ready To Run): 2230g

REVOC 160 Controller features:
o For sensored and sensorless motors
o Manufactured with the highest grade components
o Ultra compact design
o Aluminum case for improved heat dissipation
o Waterproof power switch
o Advanced boost - turbo timing system for improved acceleration performance
o Enhanced throttle - brake control function.
o 10 programmed profiles can be stored in the ESC
o High power 5A BEC
o Powerful TC Link software to test motor timing and advise the best ESC timing setting

REVOC 160 Programming Features:

General Settings
o Running Mode
o Cut-off Voltage
o Overheat protection
o Motor Rotation
o Reverse Speed

Throttle Control
o Dead Band
o Punch Rate SW- Point
o Punch Rate 1
o Punch Rate 2
o Throttle Curve

Brake Control
o Initial Brake
o Drag Brake
o Brake Strength
o Brake Rate Control
o Brake Curve

Turbo Timing
o Turbo Timing
o Turbo Delay
o Turbo Slope

REVOC 160 Power Specs
Application: 1/8 Off-Road - 1/8 On-Road
Cont. Current (A): 160A
Burst (A): 900A
Nr of Li-xx Cells: 2-6S
BEC: 6V 5A
Motor Type: Sensored - Sensorless
Motor Limits:
2S - 4S
=< 3000 KV o 4-6 Poles
2S - 6S
=< 2200 KV o 2-4 Poles
Resistance: 0.00020 ohm
Dimensions: 58x42x36mm
Weight: 122g

VELOX 805 2150KV Sensored Motor
The Team Corally VELOX 805 4-Pole sensored brushless motor is specially developed for the growing 1/8 On-road cars.
The motor has extra cooling vents to keep the motor running cooler in extreme situations. The motor can is designed only in 2 pieces, the front motor plate is solid with the motor can. The motor feature high quality oversized bearings, sintered Neodymium magnets and a superior electromagnetic design.
The result speaks for itself: impressive performance, more power, more top-end and this all keeping the motor temperature lower for maximum efficiency.

VELOX 805 2150KV Sensored Motor Features
• Sensored motor for 1/8 scale on-road
• Precision machined T6 aluminium motor can
• 12 Slots Stator Hi-torque motor design
• 4-Pole Rotor sintered Neodymium magnets
• High power solder tabs
• High RPM and oversized bearings
• High purity copper windings maximizes conductivity
• Precision Engineered for maximum efficiency
• Super thin (0.2mm) stator laminations
• ø5mm Shaft
• Removable / replaceable rotor
• Compatible with all Sensored/ Sensorless ESC

VELOX 805 2150 KV Sensored Motor Specs
Motor Length: 68mm
Motor Dia. : 40mm
Motor Shaft Dia.: 5mm
Sensor Ports: 1 Port
KV: 2150
Rotor: 4-Pole
Stator: 12 Slots
N° of Cells: 2 - 4S
Weight: 326g


Recommended Accessories:
C-52002 CS-4014 HV - High Speed Low CG Servo - High Voltage
C-48242-D X-Treme Pro 90C - 6750mAh - 14.8V 4S - Competition Li-Po Battery Pack

Spezifikationen

Allgemeine Informationen
Akku:Nicht dabei
Antriebsset:InfoBrushless SensoredInfo
Antriebstyp:Akku
RC Fahrzeug Typ:Onroad Wettbewerb>Rigid|1:8
Zielgruppe:13-99 Jugendliche / Erwachsene
Ersatzteile:Wichtigsten Teile ab Lager verfügbar, Rest auf Bestellung
Fertigungsgrad:BausatzInfo
Massstab:Info1:8
Antrieb Technik Fahrzeug:4 WD
Fernsteuerung:Nicht dabei
Lieferumfang
RC Fahrzeug
Motor
Regler

Erforderliches Zubehör

"Erforderliches Zubehör" nicht spezifiziert, eventuell sind zusätzliche Produkte erforderlich.

Dokumente & Downloads

  • Bauanleitung-Englisch.pdf [34,32 MB]
